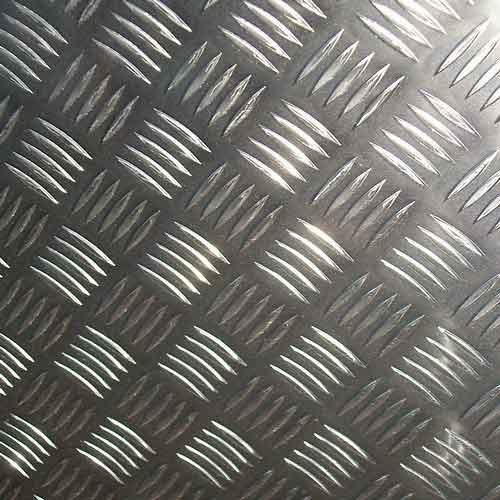

Aluminium Chequered Plates

Aluminium Chequered Plates
Aluminium Chequered Plates
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces,
  • Price
  • 1 INR
Product Description

Backed with rich industrial experience, we are engaged in offering 3003 Aluminium Plates that are used in heavy-duty areas such as aerospace, military and transportation product manufacturing. These plates are manufactured using quality proven aluminum and latest technology. 3003 Aluminium Plates are crack-resistant and used in light and heavy duty industries. Entire range of plates is tested on various parameters to ensure their flawlessness & finishing. These aluminum are accessible in varied technical dimensions and can be easily configured.

TYPE:

  • SHEET , PLATE, COIL, FLAT, STRIPS, PROFILE, BANK, CIRCLE , RING, ETC.

FORM:

  • FOIL
  • SHIM SHEETS
  • PERFORATED SHEETS
  • CHEQUERED PLATES.

RANGE:

  • 0.1 MM TO 200 MM Thickness.

CHEMICAL PROPERTIES:

The following table shows the chemical composition of Aluminium / Aluminium 3003 alloy.

Element

Content (%)

Aluminum, Al

98.6

Manganese, Mn

1.2

Copper, Cu

0.12

PHYSICAL PROPERTIES:

The physical properties of the Aluminium / Aluminium 3003 alloy are tabulated below.

Properties

Metric

Imperial

Density

2.73 g/cm3

0.0939 lb/in3

Melting point

644oC

1190oF

MECHANICAL PROPERTIES:

The mechanical properties of the Aluminium / Aluminium 3003 alloy are outlined in the following table.

Properties

Metric

Imperial

Tensile strength

130 MPa

18855 psi

Yield strength

125 MPa

18130 psi

Shear strength

83 MPa

12039 psi

Fatigue strength

55 MPa

7977 psi

Elastic modulus

70-80 GPa

10153-11603 ksi

Poisson’s ratio

0.33

0.33

Elongation

10%

10%

Hardness

35

35

THERMAL PROPERTIES:

The thermal properties of the Aluminium / Aluminium 3003 alloy are given in the following table.

Properties

Conditions


T (ºC)

Treatment

Thermal expansion co-efficient

23.2 (10-6/ºC)

20-100

–

Thermal conductivity

162 W/mK

25

H12

TEMPER:

H14, H34, H112, H116, T6 , T451, T651, T851.

STANDARD:

ASTM B209, AMS -QQ-A-250/4, AMA 4008, AMS 4015, AMS 4016, AMS 4017, AMS 4037.

FEATURES:

Dimensional accuracy, Corrosion resistance, High efficiency, Excellent finish, Durable.

TEST CERTIFICATE: MILL TEST CERTIFICATE as per EN 10204/3.1

Trade Information
  • Supply Ability
  • 100000 Per Day
  • Delivery Time
  • 1-7 Days
